STI NEZDP433 EZ Path Series 33NEZ Smoke and Acoustical Pathway, Four Gang Kit

STI NEZDP433 EZ Path Series 33NEZ Smoke and Acoustical Pathway, Four Gang Kit

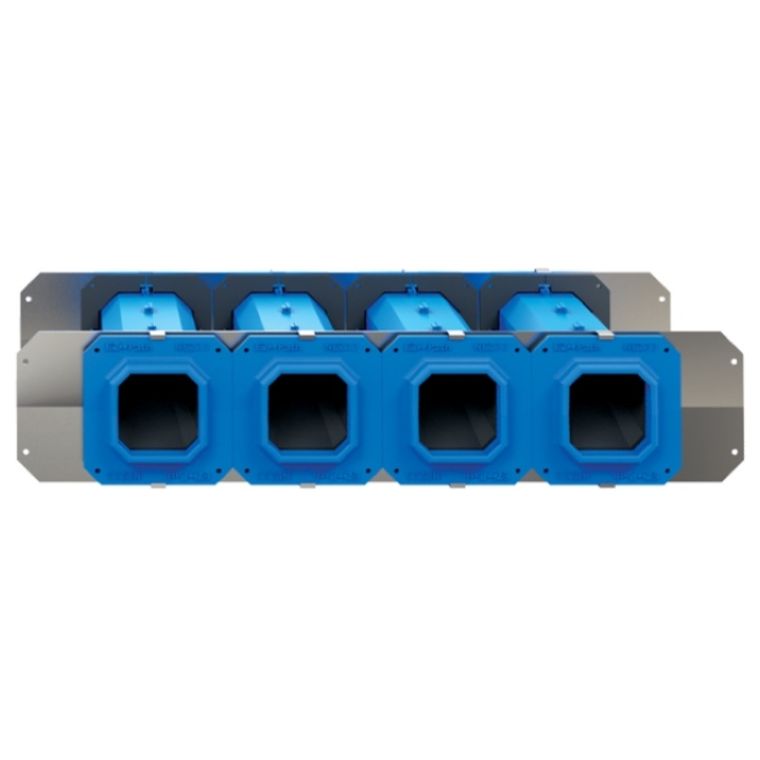

Smoke and Acoustical Pathway, Four Gang Kit (4 NEZ33 Pathways & 2 NEZP433 Four Gang Plates)

EZ Path® Series 33NEZ Smoke & Acoustical Pathway is a pathway device designed to allow cables to penetrate nonfire-rated walls, floors, and ceilings without the need for smoke sealing. This device features a built-in smoke sealing system that automatically adjusts to the number of cables installed. Once installed in a barrier, cables can be easily added or removed at any time without the need to remove or reinstall caulking materials

Its octagonal profile allows a maximum number of cables to be installed in a relatively small area. The pathway measures approximately 4-1/2 in (114 mm) x 4-1/2 in (114 mm) and is adjustable to accommodate wall and floor thicknesses between 4 in (102 mm) and 8 in (203 mm).

Features & Benefits:

• Cable management by use, type, and vendor
• Zero maintenance - easy moves, adds, and changes
• Excellent acoustical performance; low smoke leakage ratings
• Easy to install - can be installed horizontally and vertically.
• Retrofittable - retrofit kit comes split apart for old work
• Clean, engineered appearance
• Pathways can be ganged for additional capacity
• Pathway adjusts to accommodate wall, floor and ceiling thicknesses between 4 in (102 mm) and 8 in (203 mm)
