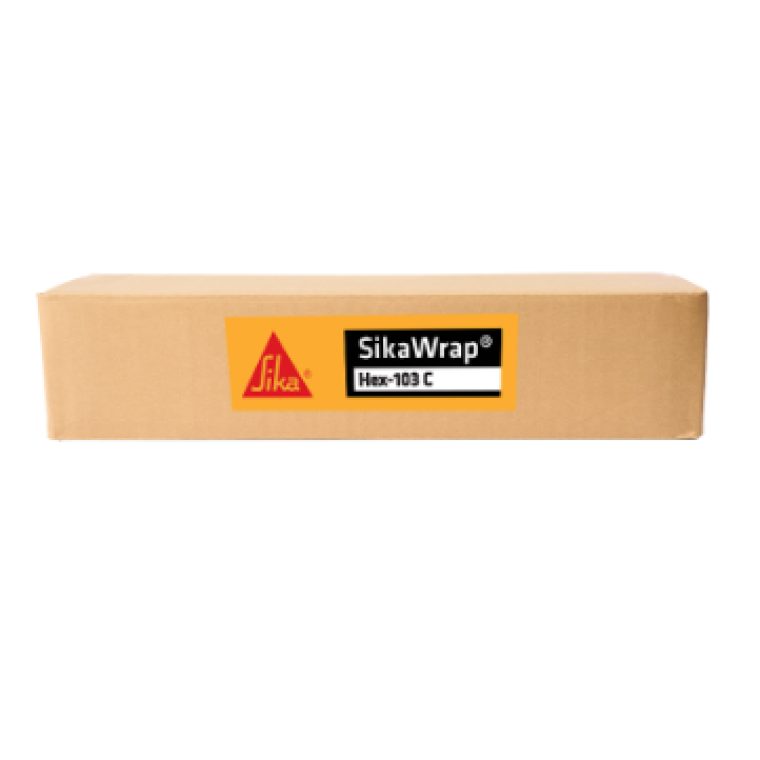

SikaWrap Hex 103C - 18 oz./sq.yd. Uni-Directional ICC Listed Carbon Fiber Fabric 25" x 50' roll (104 sf)

Required for Installation of the SikaWrap®
Sikadur®-330 is a two-component , solvent-free, moisture-tolerant, high strength, high modulus structural epoxy adhesive.
For use as an impregnating resin with the SikaWrap® Hex 106G, 113C, 117C, 230C and 430G Structural Strengthening Systems.

Mfr. Model #107670

SikaWrap Hex 103C - 18 oz./sq.yd., Uni-Directional, ICC Listed, Carbon Fiber Fabric, 25" x 50' roll (104 sf)

SikaWrap® Hex-103 C is a high-strength, unidirectional carbon fiber fabric. Material is field laminated using Sikadur-300/Sikadur Hex-300 epoxy to form a carbon fiber reinforced polymer (CFRP) used to strengthen structural concrete elements.

Uses:

SikaWrap® Hex-103 C may only be used by experienced professionals.

Load Increases:

• Increased live loads
• Increased traffic volumes on bridges
• Installation of heavy machinery in industrial buildings
• Vibrating structures
• Changes of building utilization

Seismic Strengthening:

• Column wrapping
• Masonry walls

Damage to Structural Parts:

• Aging of construction materials
• Vehicle impact
• Fire
• Blast resistance

Changes in the Structural System:

• Removal of walls or columns
• Removal of slab sections for openings

Corrections to Design or Construction Defects:

• Insufficient reinforcements
• Insufficient structural depth

Advantages:

• Used for shear, confinement, seismic or flexural strengthening
• Versatile can be wrapped around complex geometries
• High Strength
• Light Weight
• Non-corrosive
• Alkali Resistant
• Low aesthetic impact

Approvals/Standards:

• Independently tested in accordance with ICC AC125 "Acceptance Criteria for Concrete and Reinforced and Unreinforced Masonry Strengthening Using Fiber-reinforced Composite Systems" (refer to current evaluation service report ICC ESR-3288).
• Compliant with 2015, 2012, and 2009 International Building Code (IBC) and International Residential Code (IRC); 1997 Uniform Building Code (UBC).
• Used in systems that follow American Concrete Institute (ACI) 440 Guides for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete / Unreinforced Masonry Structures.
