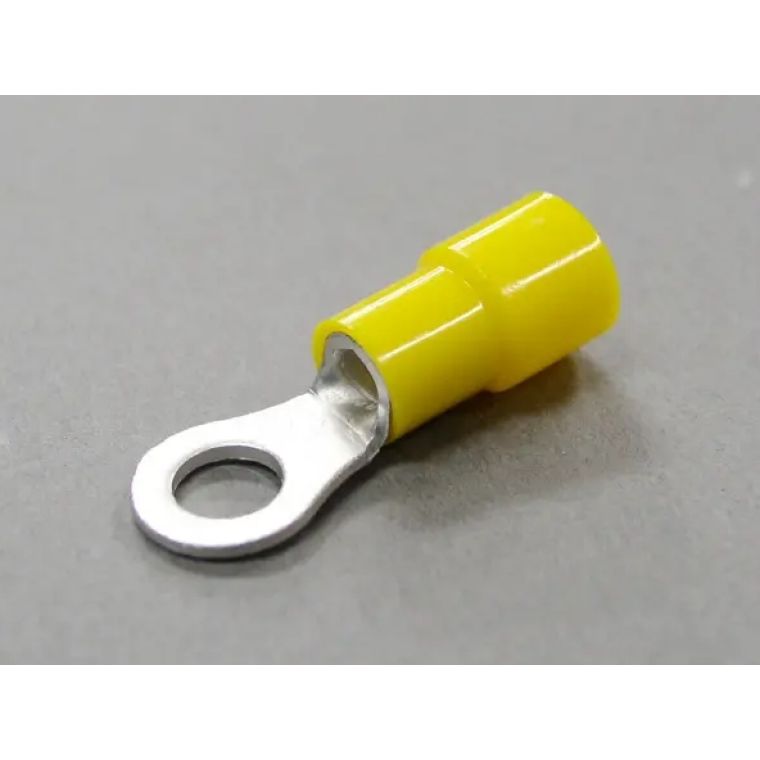

Nichifu TMEX 5.5-5-YEL Eco-Friendly Polycarbonate Insulated Ring Terminal, 12-10 AWG, #10 Stud
Brand
Nichifu
Item #
NTM-TMEX-5.5-5
Mfr. Model #
TMEX 5.5-5-YEL
Product Description
- Excellent for insulation with rated voltage of 600V.
- Temperature range: -40°F to +257°F (-40°C to +125°C).
- Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
- Stud: 10.
- AWG: 12-10.
- AWG: 12-10.
- B: 5.3mm / 0.21".
- L: 27mm / 1.06".
- F: 8.25mm / 0.32".
- øD: 6.8mm / 0.27".
- ød2: 5.3mm / 0.21".
- Wire Size Range for Stranded Wire (mm²): 2.63-6.64.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- Standards: UL, CSA, JIS.
- RoHS: RoHS SOC 10.
- H: 14.0mm / 0.55".
- Color: Yellow.
- Rated Voltage: 600V.
Price
$0.16
/
each
