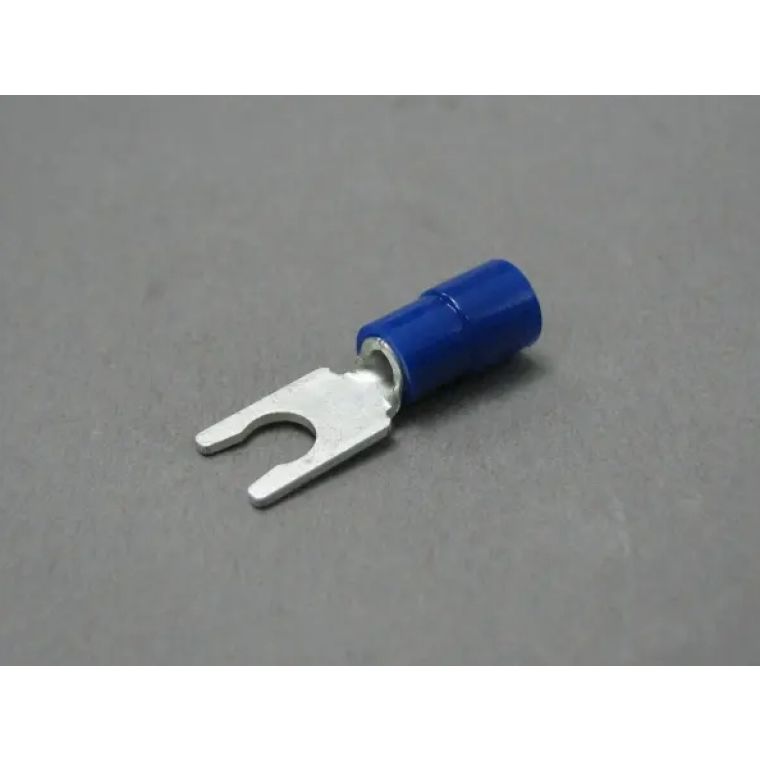

Nichifu TMEX 2LY-3.5S-BLU Eco-Friendly Polycarbonate Insulated Locking Spade Terminal, 16-14 AWG, #6 Stud
Brand
Nichifu
Item #
NTM-TMEX-2LY-3.5S
Mfr. Model #
TMEX 2LY-3.5S-BLU
Product Description
- Excellent for insulation with rated voltage of 600V.
- Temperature range: -40°F to +257°F (-40°C to +125°C).
- Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
- Stud: 4.
- AWG: 16-14.
- d2: 3.7mm / 0.15".
- B: 6.4mm / 0.25".
- L: 19.5mm / 0.77".
- F: 6.6mm / 0.26".
- H: 10mm / 0.39".
- øD: 4.6mm / 0.18".
- Wire Size Range for Stranded Wire (mm²): 1.04-2.63.
- Applicable Hand Tools: NH 12, NH 32.
- Appicable Crimpint Machines: NA 10, NA 3.
- Applicable Dies: N10 12, N3 12.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated).
- Material (Insulator): Polycarbonate.
- Rated Voltage: 600V.
- Standards: UL, C-UL.
- RoHS: RoHS SOC 10.
Price
$0.12
/
each
