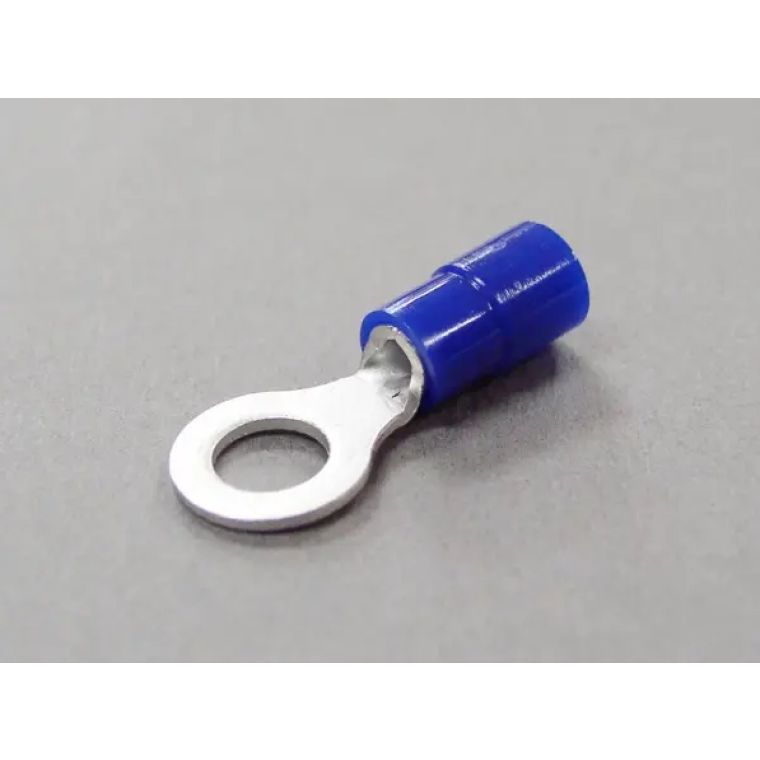

Nichifu TMEX 2-5-BLU Eco-Friendly Polycarbonate Insulated Ring Terminal, 16-14 AWG, #10 Stud
Brand
Nichifu
Item #
NTM-TMEX-2-5
Mfr. Model #
TMEX 2-5-BLU
Product Description
- Excellent for insulation with rated voltage of 600V.
- Temperature range: -40°F to +257°F (-40°C to +125°C).
- Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
- Stud: 10.
- AWG: 16-14.
- B: 9.5mm / 0.37".
- L: 22.5mm / 0.89".
- F: 7.75mm / 0.31".
- øD: 4.6mm / 0.18".
- ød2: 5.3mm / 0.21".
- Wire Size Range for Stranded Wire (mm²): 1.04-2.63.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- Standards: UL, CSA, JIS.
- RoHS: RoHS SOC 10.
- H: 10.0mm / 0.39".
- Color: Blue.
- Rated Voltage: 600V.
Price
$0.10
/
each
