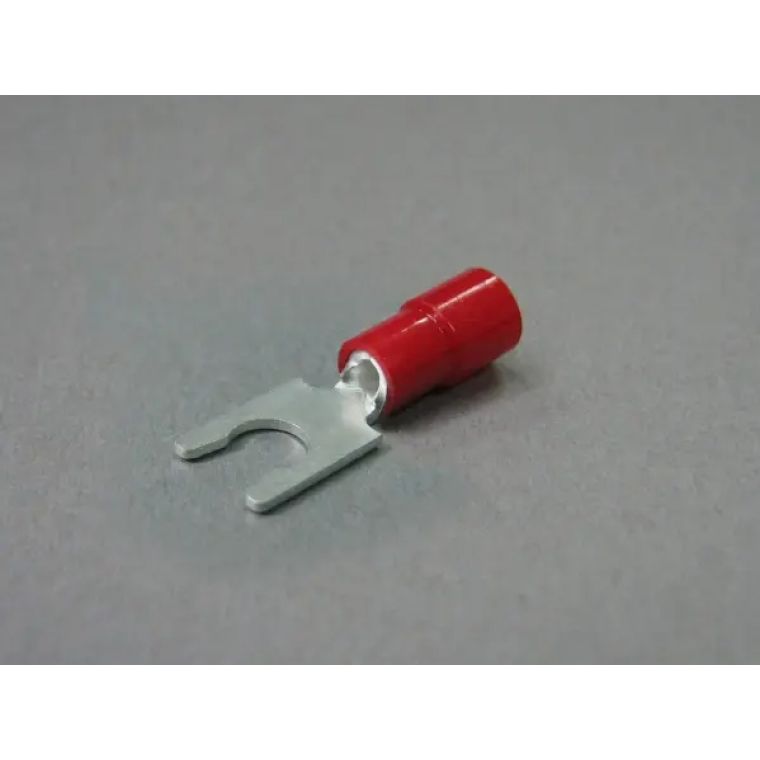

Nichifu TMEX 1.25LY-4S-RED Eco-Friendly Polycarbonate Insulated Locking Spade Terminals, 22-16 AWG, 6 Stud
Brand
Nichifu
Item #
NTM-TMEX 1.25LY-4S-RED
Mfr. Model #
TMEX 1.25LY-4S-RED
Product Description
- Excellent for insulation with rated voltage of 600V.
- Temperature range: -40°F to +257°F (-40°C to +125°C).
- Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
- Stud: 6.
- AWG: 22-16.
- d2: 4.3mm / 0.17".
- B: 7.1mm / 0.28".
- L: 21.5mm / 0.85".
- F: 7.6mm / 0.3".
- H: 10mm / 0.39".
- øD: 4.1mm / 0.16".
- Wire Size Range for Stranded Wire (mm²): 0.3-1.65.
- Applicable Hand Tools: NH 11, NH 32.
- Appicable Crimpint Machines: NA 10, NA 3.
- Applicable Dies: N10 11, N3 11.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated).
- Material (Insulator): Polycarbonate.
- Rated Voltage: 600V.
- Insulator Temperature: -40°F to 257°F / -40°C to 125°C.
- Standards: UL, C-UL.
- RoHS: RoHS SOC 10.
Price
$0.12
/
each
