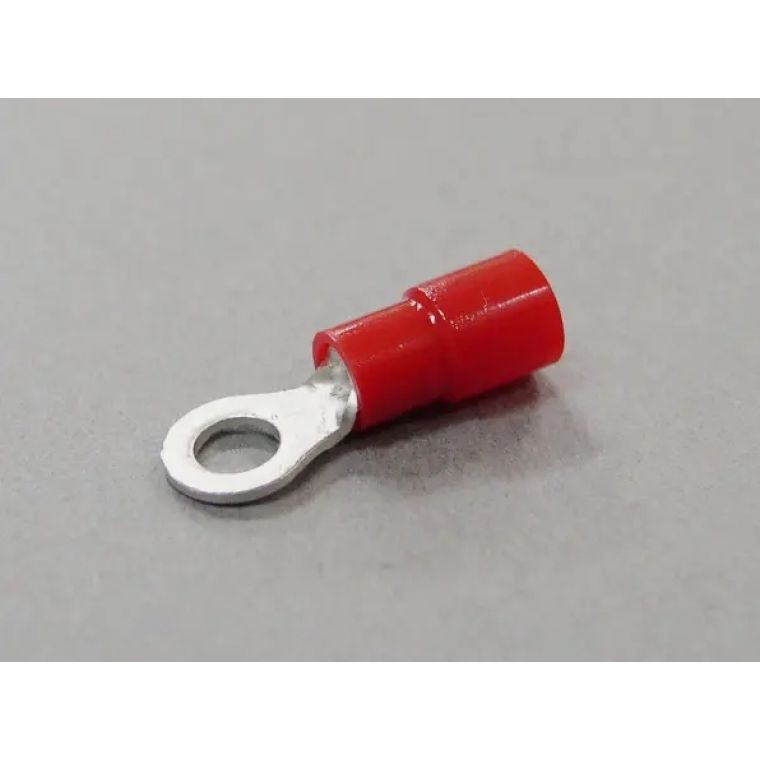

Nichifu TMEX 1.25-3.5-RED Eco-Friendly Polycarbonate Insulated Ring Terminal, 22-16 AWG, #6 Stud
Brand
Nichifu
Item #
NTM-TMEX-1.25-3.5
Mfr. Model #
TMEX 1.25-3.5-RED
Product Description
- Excellent for insulation with rated voltage of 600V.
- Temperature range: -40°F to +257°F (-40°C to +125°C).
- Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
- Stud: 6.
- AWG: 22-16.
- B: 6.6mm / 0.26".
- L: 18.8mm / 0.74".
- F: 5.5mm / 0.22".
- øD: 4.1mm / 0.16".
- ød2: 3.7mm / 0.15".
- Wire Size Range for Stranded Wire (mm²): 0.30-1.65.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- Standards: UL, CSA, JIS.
- RoHS: RoHS SOC 10.
- H: 10.0mm / 0.39".
- Color: Red.
- Rated Voltage: 600V.
Price
$0.09
/
each
