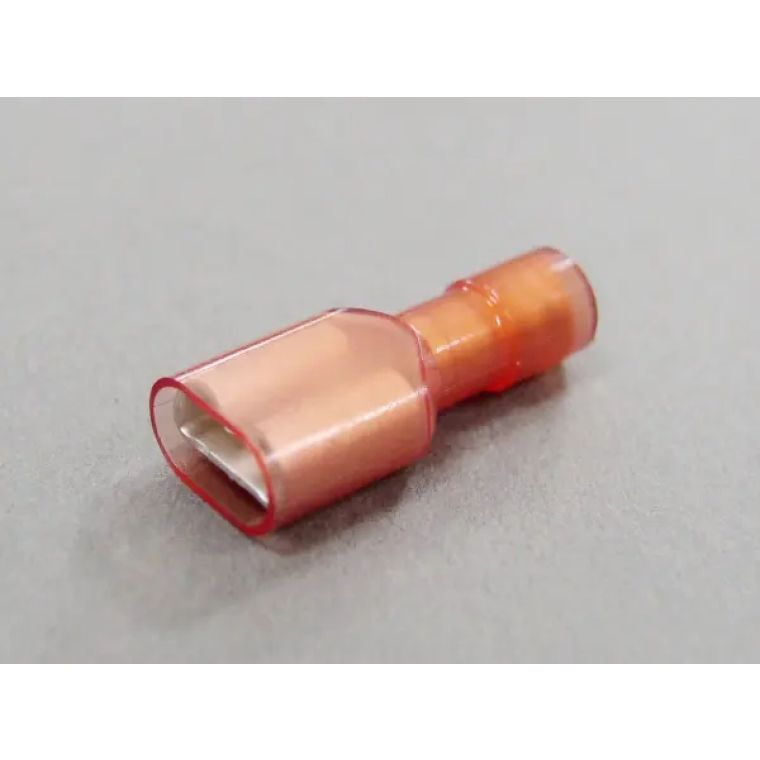

Nichifu TMDN 630809-FA-RCL Nylon Fully-Insulated Disconnect Terminal with Extra Copper Sleeve, Female, 22-16 AWG
Brand
Nichifu
Item #
NTM-TMDN-630809-FA
Mfr. Model #
TMDN 630809-FA-RCL
Product Description
- AWG: 18-16.
- B: 6.8mm / 0.27".
- W: 9mm / 0.35".
- L: 21mm / 0.83".
- ød: 1.7mm / 0.07".
- øD: 3.2mm / 0.13".
- G: 4.9mm / 0.19".
- H: 9.5mm / 0.37".
- Mating Tab Thickness: 0.8mm / 0.03".
- Wire Size Range for Stranded Wire: 0.75-1.25mm².
- Standard Color: Red Translucent.
- Material (Terminal): Brass (electro-tin-plated).
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated).
- Material (Insulator): Nylon.
- Rated Voltage: 300V.
- Insulator Temperature: -40°F to 221°F / -40°C to 105°C.
- Flame Retardance: UL 94 V-2.
- Standards: UL.
- RoHS: RoHS 10.
- Applicable Hand Tools: NH 11, NH 32.
- Appicable Crimpint Machines: NA 10, NA 3.
- Applicable Applicator: N10AP-TM.
- Applicable Dies: N10 11, N3 11.
- Tab Size: .250 x .032.
Price
$0.21
/
each
