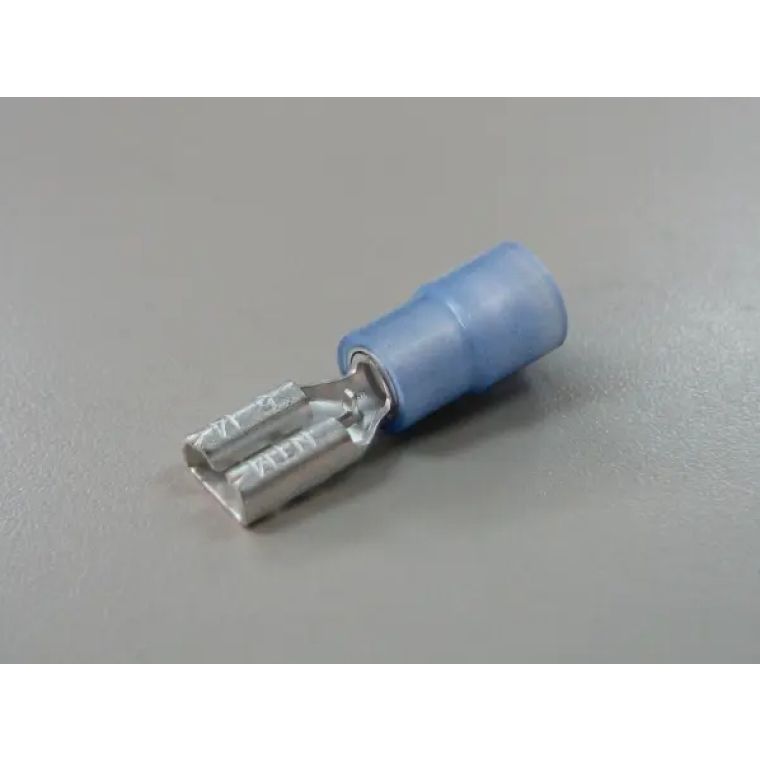

Nichifu TMDEN 480520-F-BCL Nylon Half-Insulated Disconnect Terminal with Extra Copper Sleeve, Female, 16-14 AWG
Brand
Nichifu
Item #
NTM-TMDEN-480520-F
Mfr. Model #
TMDEN 480520-F-BCL
Product Description
- AWG: 14.
- B: 5mm / 0.2".
- L: 19.5mm / 0.77".
- ød: 3.91mm / 0.15".
- øD: 4.49mm / 0.18".
- H: 10mm / 0.39".
- Mating Tab Thickness: 0.5mm / 0.02".
- Wire Size Range for Stranded Wire: 0.003in².
- Material (Terminal): Brass (electro-tin-plated).
- Material (Sleeve): Oxygen free copper tube (electro-tin-plated).
- Material (Insulator): Nylon.
- Standards: UL/CSA.
- Applicable Hand Tools: NH 12, NH 32.
- Appicable Crimpint Machines: NA 10.
- Applicable Applicator: N10AP-T.
- Applicable Dies: N10 12.
- Tab Size: .187" x .020".
Price
$0.20
/
each
