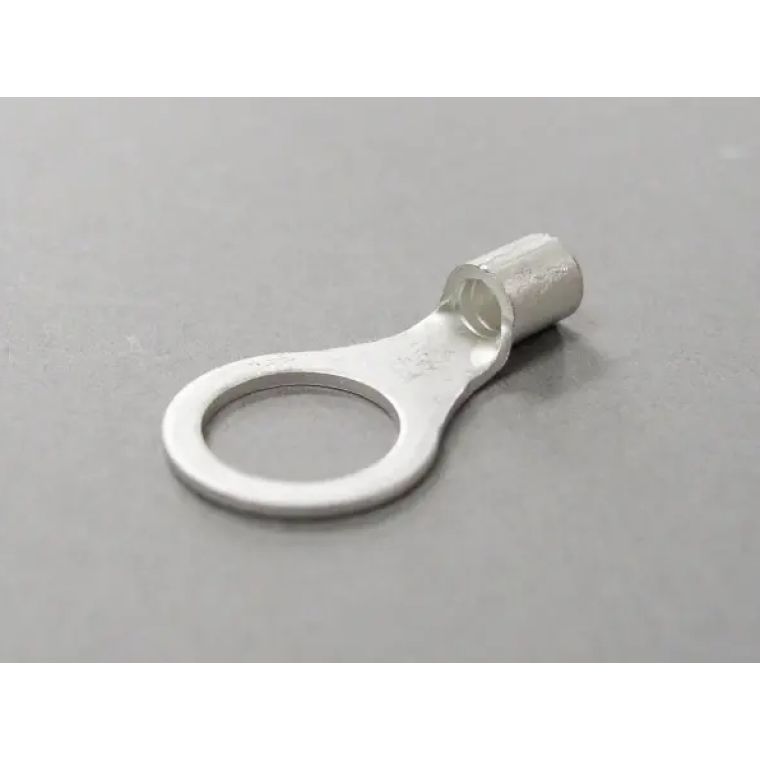

Nichifu R 5.5-10 Non-Insulated Ring Terminal, R Type, 12-10 AWG, 3/8" Stud
Brand
Nichifu
Item #
NTM-R5.5-10
Mfr. Model #
R 5.5-10
Product Description
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
- Stud: 3/8".
- AWG: 12-10.
- B: 15mm / 0.59".
- L: 28mm / 1.1".
- F: 14mm / 0.55".
- E: 6.5mm / 0.26".
- øD: 5.6mm / 0.22".
- ød: 3.4mm / 0.13".
- ød2: 10.5mm / 0.41".
- Wire Size Range for Solid Wire (mm): 1.82-2.89.
- Wire Size Range for Stranded Wire (mmø|): 2.63-6.64.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- RoHS: RoHS 10.
Price
$0.17
/
each
