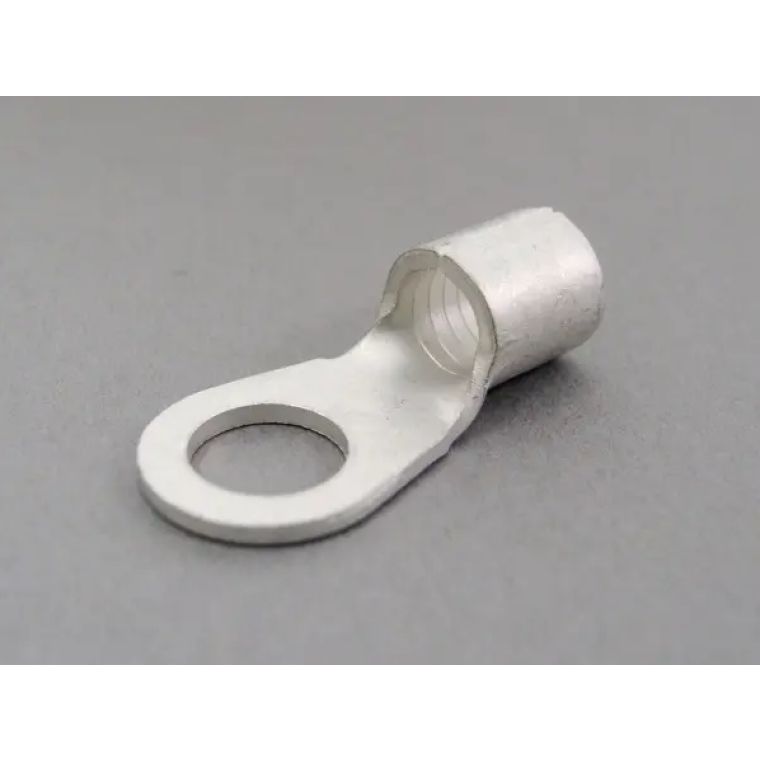

Nichifu R 22-10 Non-Insulated Ring Terminal, R Type, 4 AWG, 3/8" Stud
Brand
Nichifu
Item #
NTM-R22-10
Mfr. Model #
R 22-10
Product Description
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
- Stud: 3/8".
- AWG: 4.
- B: 17.5mm / 0.69".
- L: 36.3mm / 1.43".
- F: 15.55mm / 0.61".
- E: 12mm / 0.47".
- øD: 11.6mm / 0.46".
- ød: 7.7mm / 0.3".
- ød2: 10.5mm / 0.41".
- Wire Size Range for Stranded Wire (mmø|): 16.78-26.66.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- RoHS: RoHS 10.
Price
$0.68
/
each
