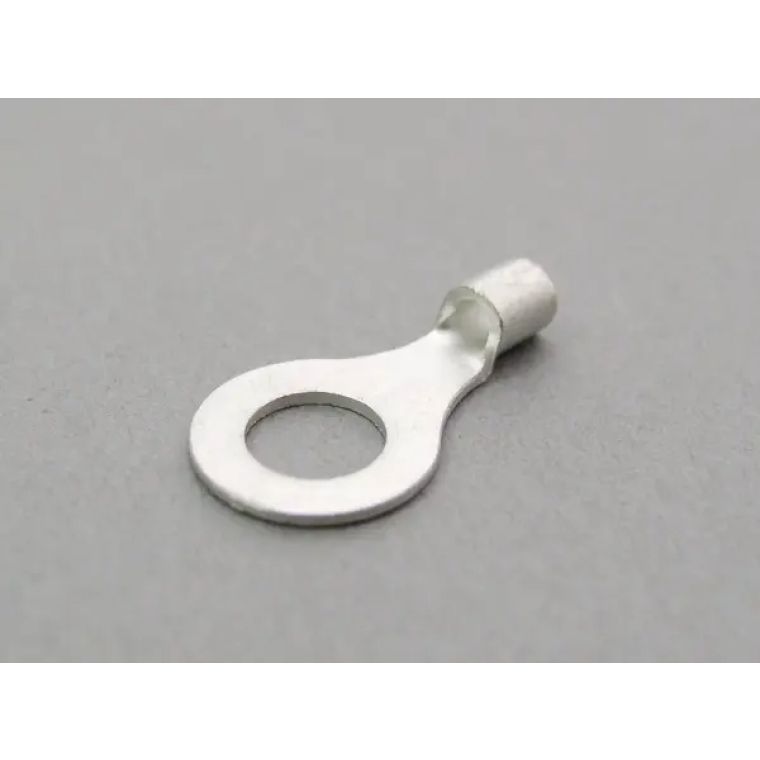

Nichifu R 2-6 Non-Insulated Ring Terminal, R Type, 16-14 AWG, 1/4" Stud
Brand
Nichifu
Item #
NTM-R2-6
Mfr. Model #
R 2-6
Product Description
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
- Stud: 1/4".
- AWG: 16-14.
- B: 12mm / 0.47".
- L: 21.5mm / 0.85".
- F: 11mm / 0.43".
- E: 4.5mm / 0.18".
- øD: 4.2mm / 0.17".
- ød: 2.3mm / 0.09".
- ød2: 6.4mm / 0.25".
- Wire Size Range for Solid Wire (mm): 1.14-1.82.
- Wire Size Range for Stranded Wire (mmø|): 1.04-2.63.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- RoHS: RoHS 10.
Price
$0.12
/
each
