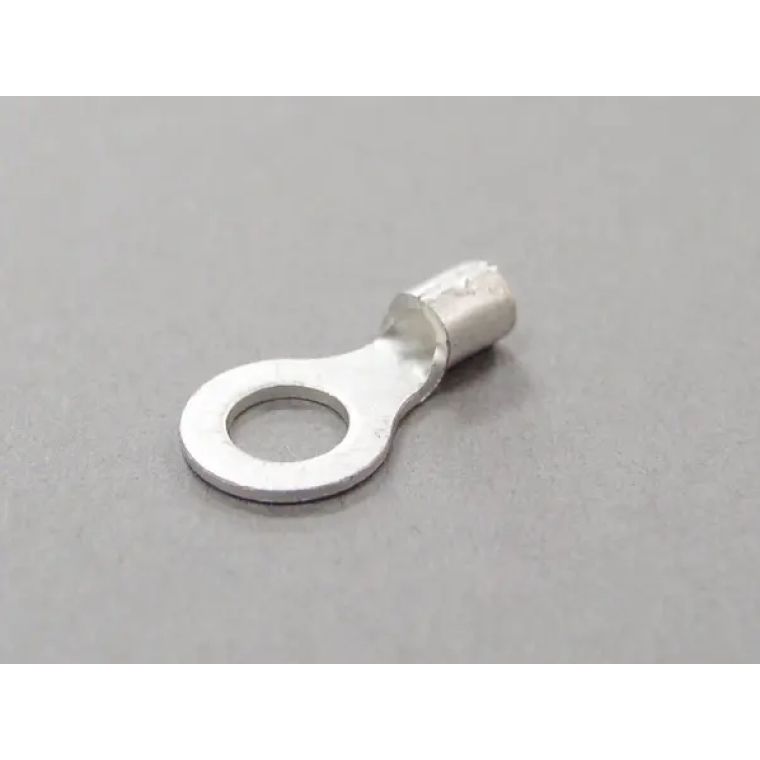

Nichifu R 2-5 Non-Insulated Ring Terminals - R Type, 16-14 AWG, #10 Stud
Brand
Nichifu
Item #
NTM-R2-5
Mfr. Model #
R 2-5
Product Description
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
- Stud: #10.
- AWG: 16-14.
- B: 9.5mm / 0.37".
- L: 17mm / 0.67".
- F: 7.75mm / 0.31".
- E: 4.5mm / 0.18".
- øD: 4.2mm / 0.17".
- ød: 2.3mm / 0.09".
- ød2: 5.3mm / 0.21".
- Wire Size Range for Solid Wire (mm): 1.14-1.82.
- Wire Size Range for Stranded Wire (mmø|): 1.04-2.63.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- RoHS: RoHS 10.
Price
$0.10
/
each
