Nichifu R 2-4 Non-Insulated Ring Terminals - R Type, 16-14 AWG, #8 Stud

Brand Nichifu
Item #
NTM-R2-4
Mfr. Model # R 2-4

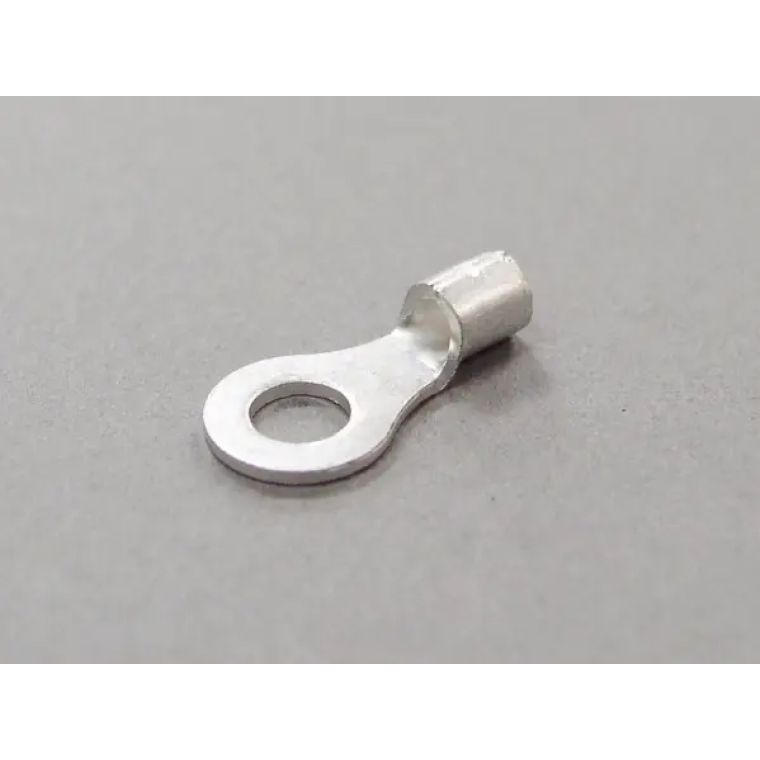

main product photo
Product Description

  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
  • Stud: #8.
  • AWG: 16-14.
  • B: 8.5mm / 0.33".
  • L: 16.5mm / 0.65".
  • F: 7.75mm / 0.31".
  • E: 4.5mm / 0.18".
  • øD: 4.2mm / 0.17".
  • ød: 2.3mm / 0.09".
  • ød2: 4.3mm / 0.17".
  • Wire Size Range for Solid Wire (mm): 1.14-1.82.
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63.
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
  • RoHS: RoHS 10.

Product Details
Specification Description
Brand Name: Nichifu
Brand Part Number: R 2-4
Documents

There are no documents for this product.

Price $0.09 / each

Must order in increments of 100 units Must order minimum of 1200 units
100 units in stock. Estimated to ship Fri. Dec 12 Need more? Estimated to ship Tue. Dec 16
Must order in increments of 100 units. Must order minimum of 1200 units.
