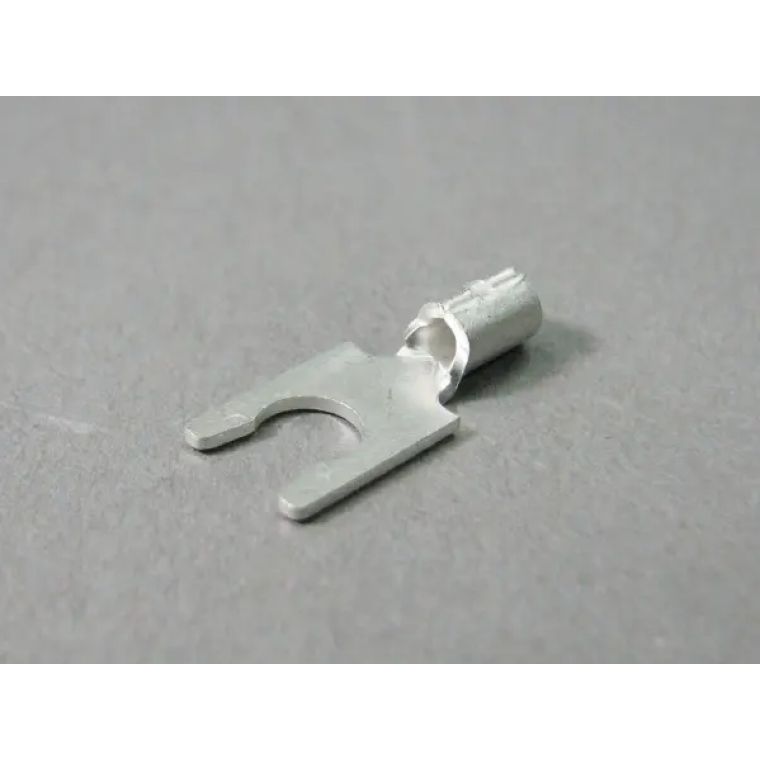

Nichifu 5.5LY-3.5S Non-Insulated Locking Spade Terminal, 12-10 AWG, #6 Stud
Brand
Nichifu
Item #
NTM-5.5LY-3.5S
Mfr. Model #
5.5LY-3.5S
Product Description
- MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
- STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806.
- Stud: #6.
- AWG: 12-10.
- B: 7.9mm / 0.31".
- L: 18.2mm / 0.72".
- F: 7.6mm / 0.3".
- E: 6.5mm / 0.26".
- øD: 5.6mm / 0.22".
- ød: 3.4mm / 0.13".
- ød2: 3.7mm / 0.15".
- Wire Size Range for Solid Wire (mm): 1.82-2.89.
- Wire Size Range for Stranded Wire (mmø|): 2.63-6.64.
- Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating).
- RoHS: RoHS 10.
Price
$0.16
/
each
