Cetco Hydrobar Tube 2" x 24"

CETCO
Item #
CET-HYDROBAR
Mfr. Model # HYDROBAR

Cetco Hydrobar Tube 2" x 24"

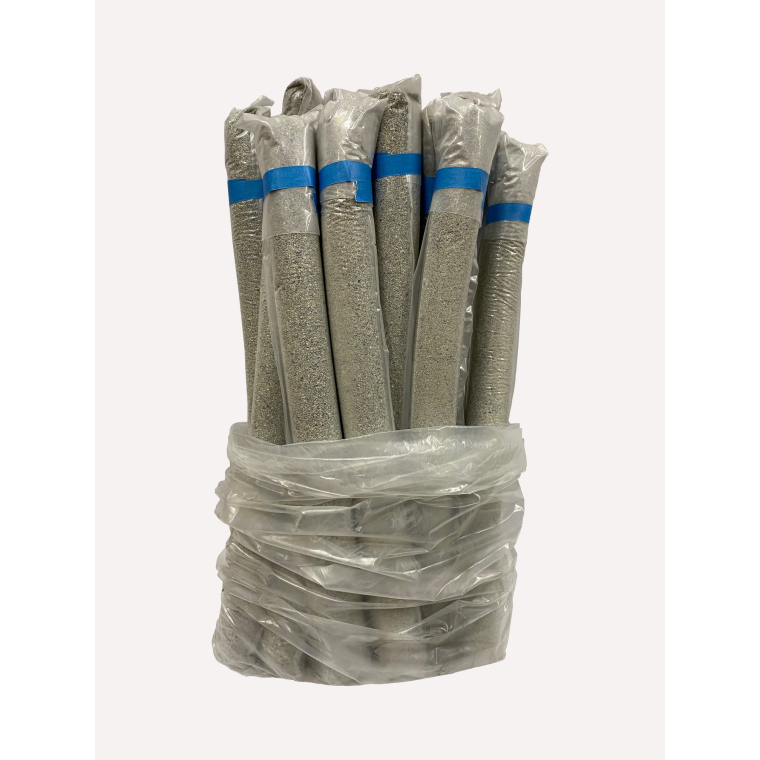

HYDROBAR TUBES are a detailing accessory product for CETCO Waterproofing Systems used at the footing/wall junction to provide additional waterproofing protection. HYDROBAR TUBES consist of a thin, water-soluble tubing filled with granular sodium bentonite. When wetted, the tubing dissolves, allowing the bentonite to hydrate and form into a dense, low permeable material that combines with the sodium bentonite in the VOLCLAY System products. Each Hydrobar Tube measures 2” (50 mm) in diameter by 2’ (0.61 m), assuring a consistent application of sodium bentonite at the critical footing/wall junction.

The mineralogical composition of sodium bentonite is a minimum of 90% Montmorillonite with a maximum of 10% native sediments and unaltered volcanic ash. Typical sieve analysis is 90% through a 20 mesh sieve and 10% through a 200 mesh sieve. The free swell rating of the bentonite is: two grams sifted into deionized water swells to occupy a minimum volume of 16 ccs.

Applications:

  • HYDROBAR TUBES are designed to work in conjunction with VOLCLAY waterproofing membranes at the footing/wall junction of foundation walls. HYDROBAR TUBES are a convenient method of providing additional waterproofing protection at this critical junction. HYDROBAR TUBES are not an expansion joint sealant.



Product Details
Specification Description
Brand Name: CETCO
Brand Part Number: HYDROBAR
$8.99 / each
  • 16+ for $6.95 / each

Must order in increments of 16 units
Estimated to ship Thu. Jun 20.
